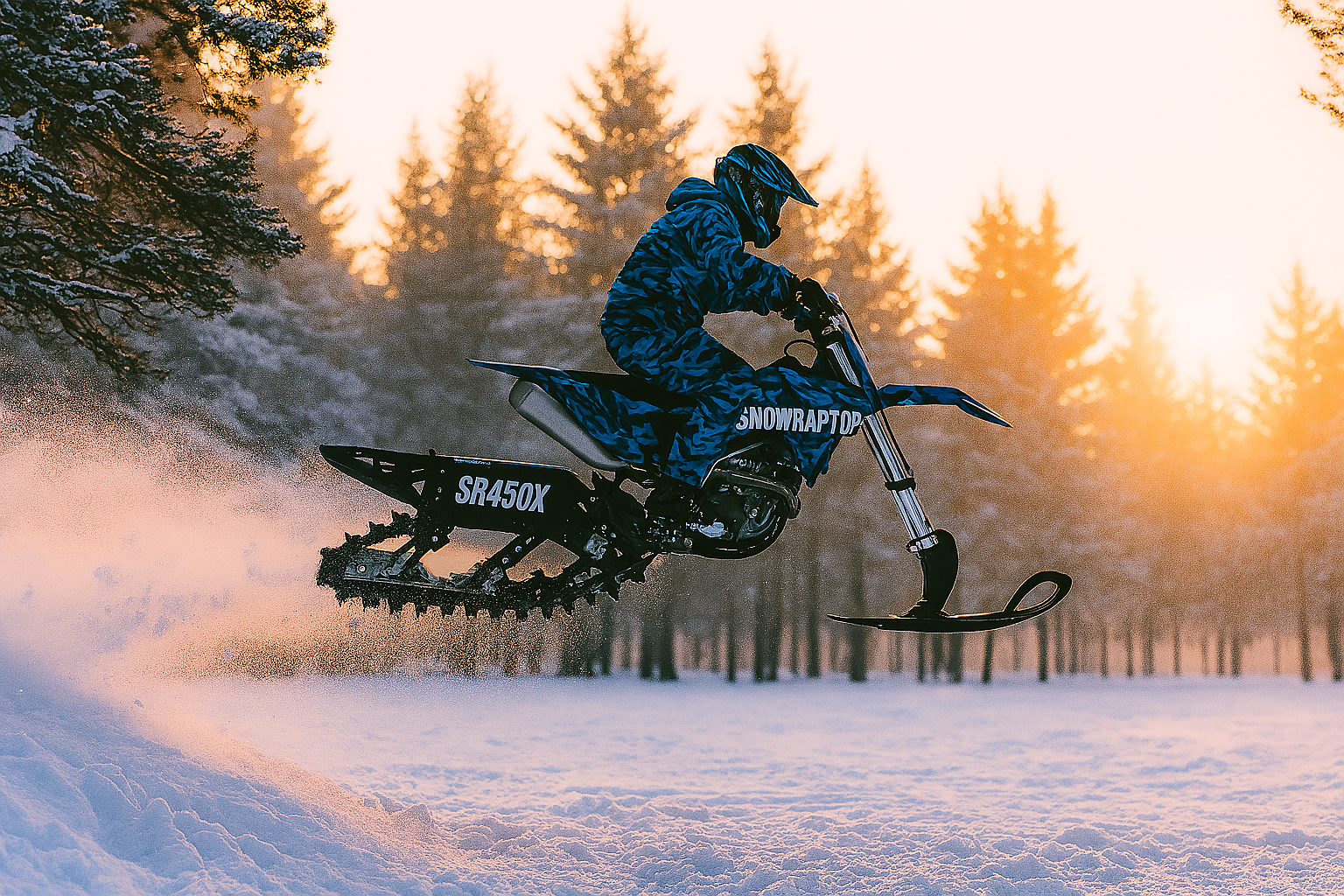

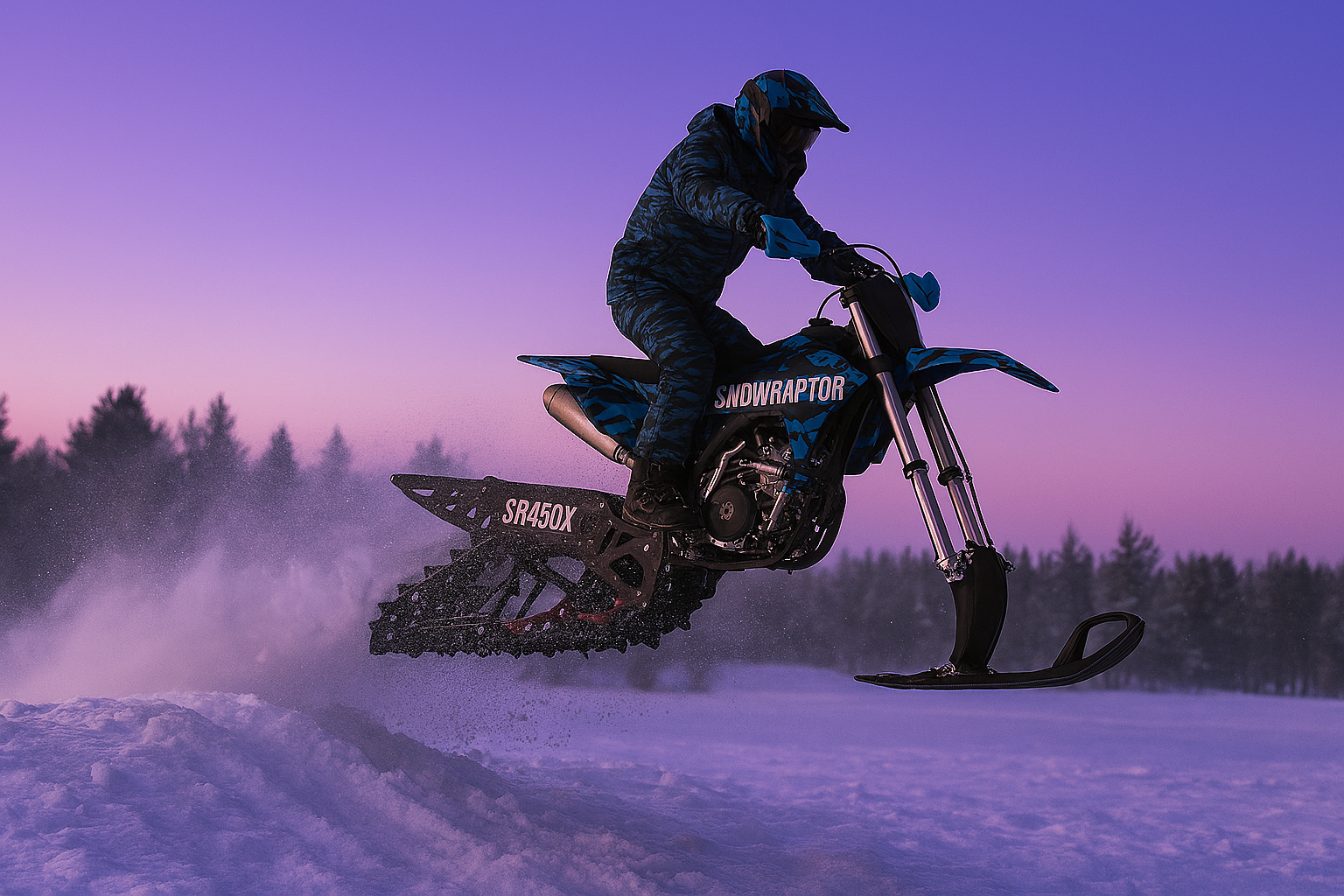

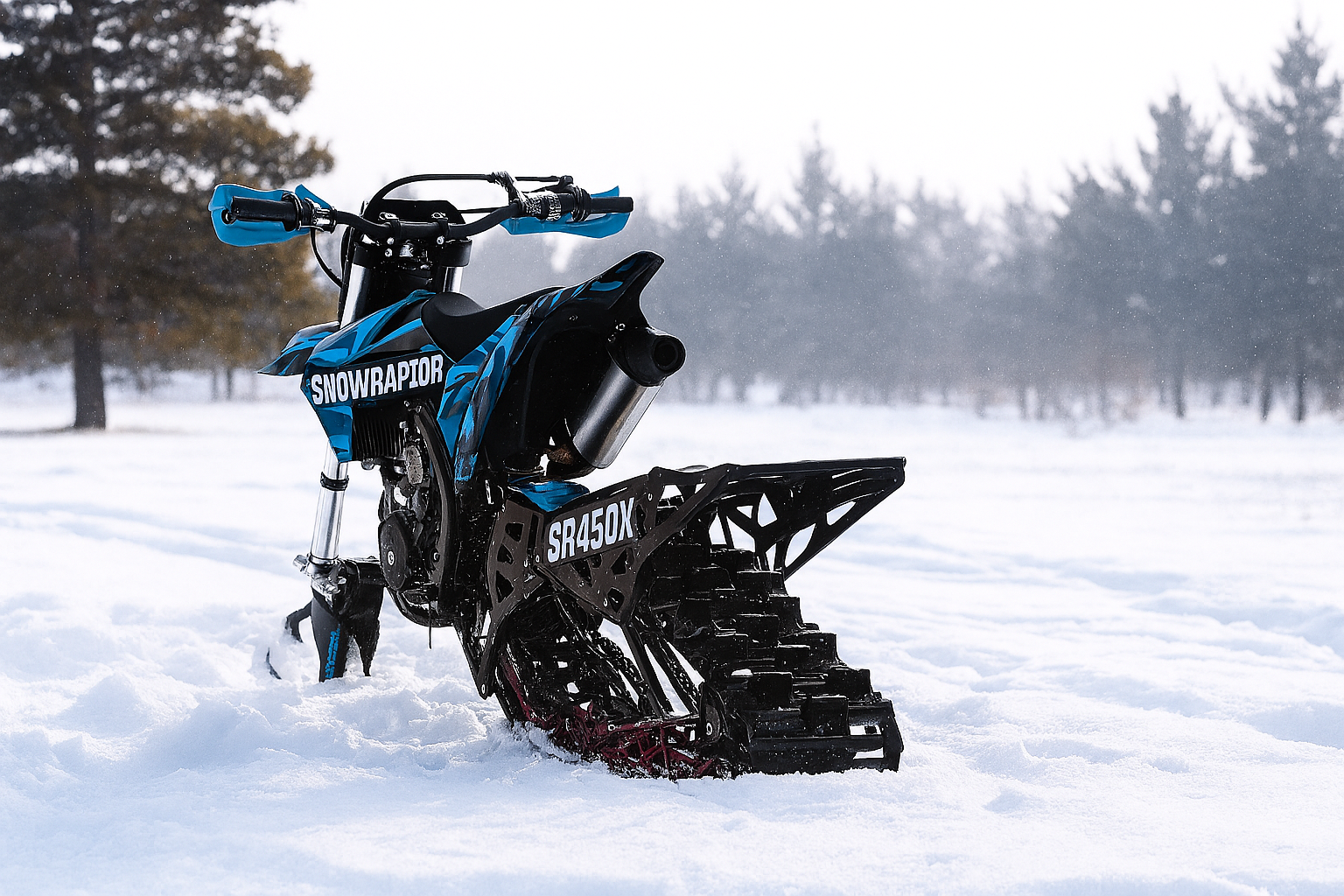

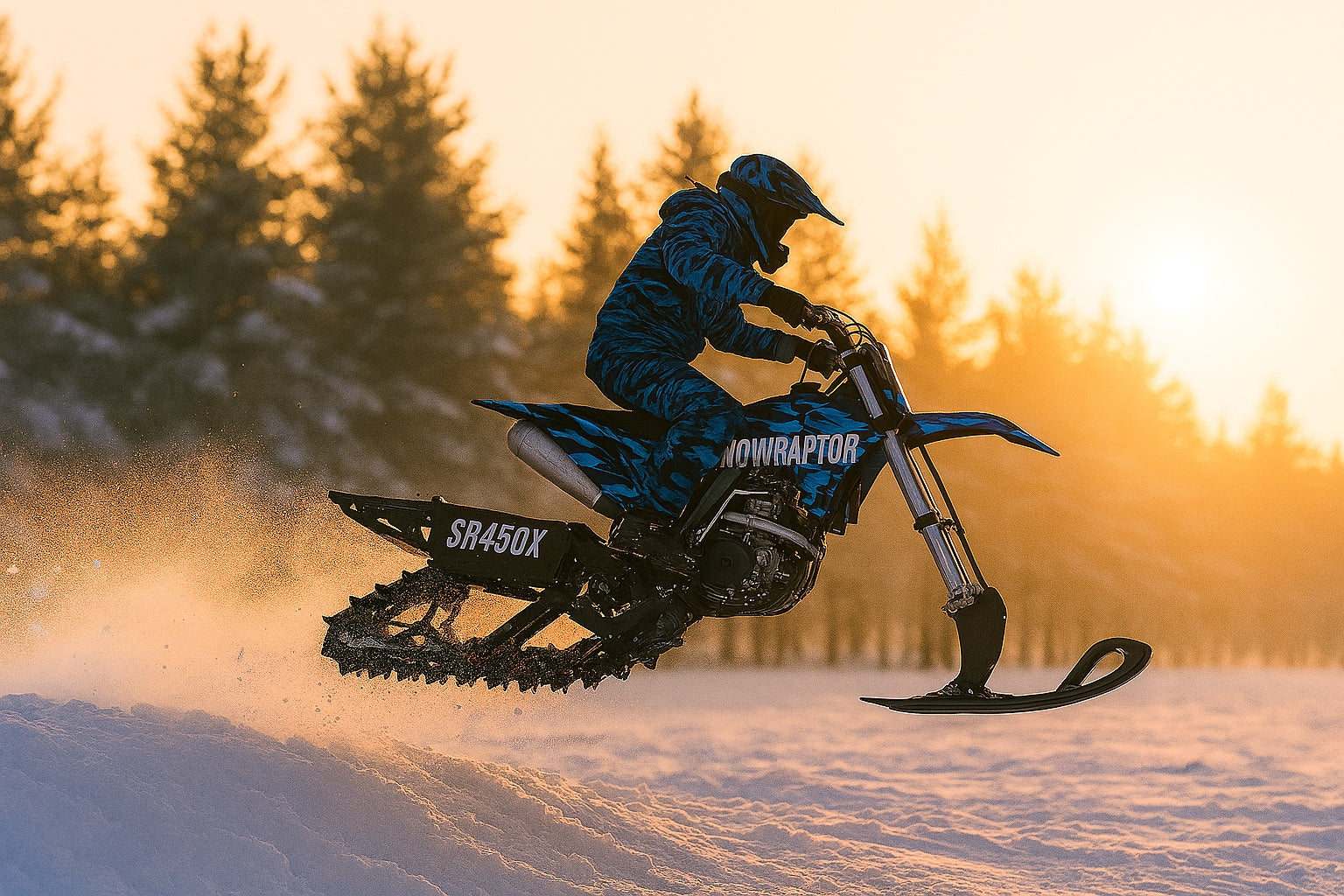

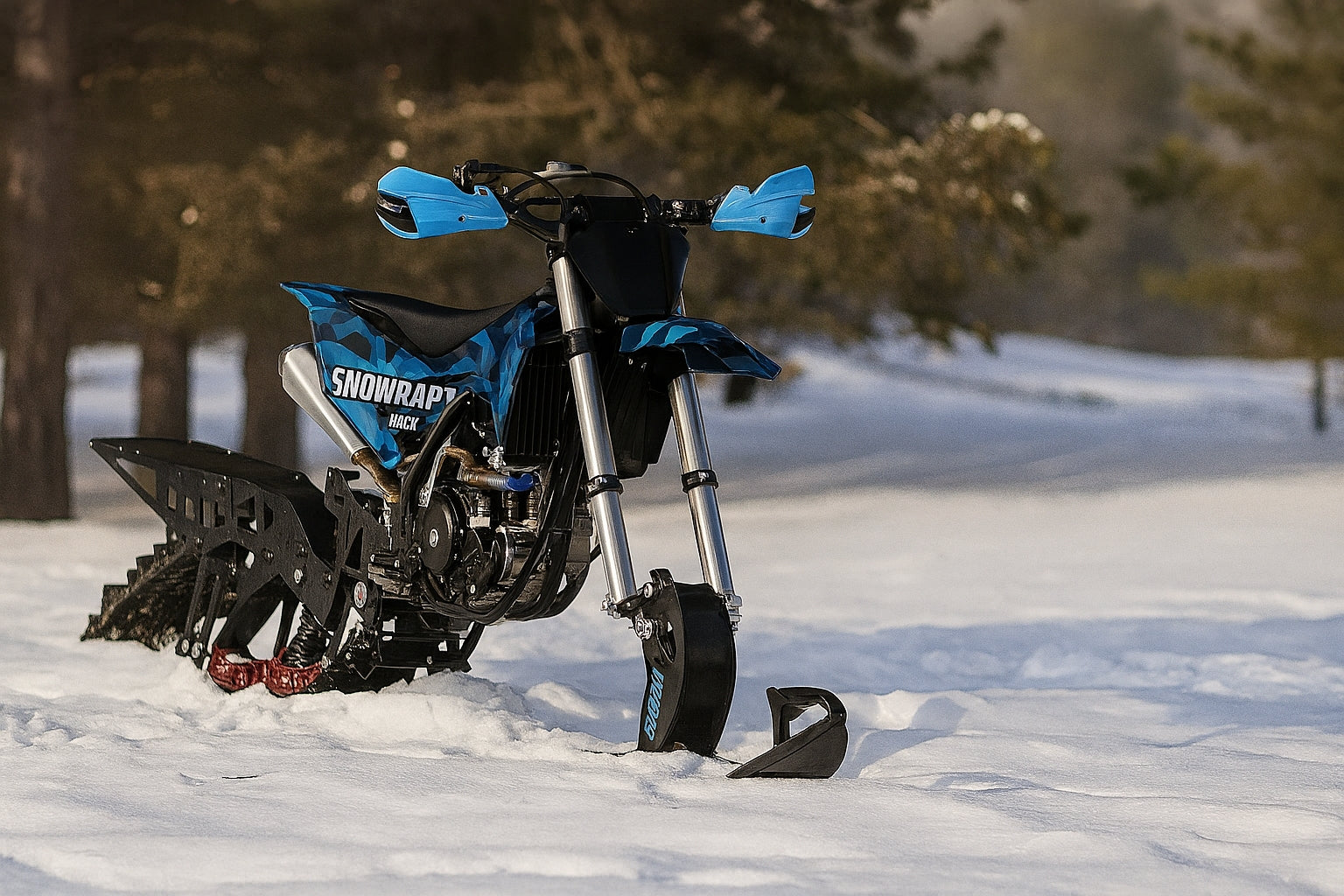

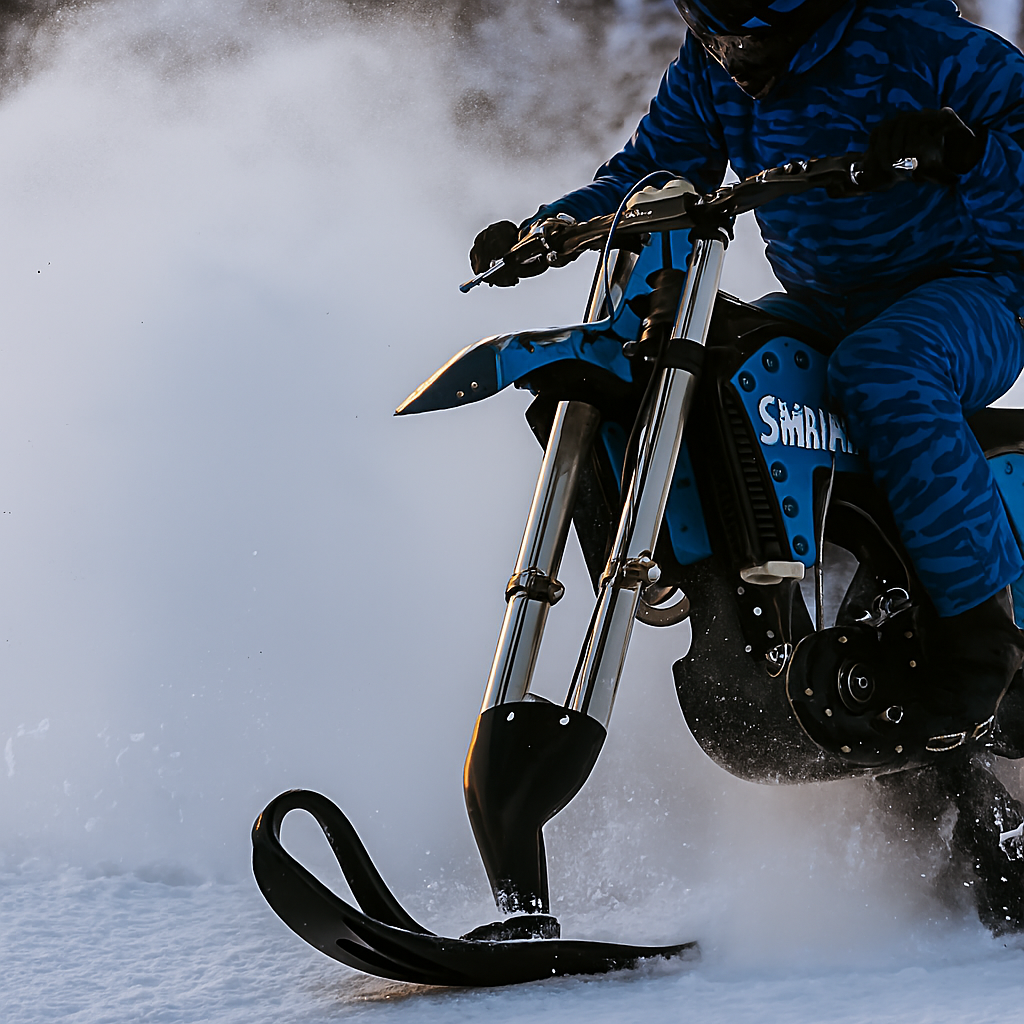

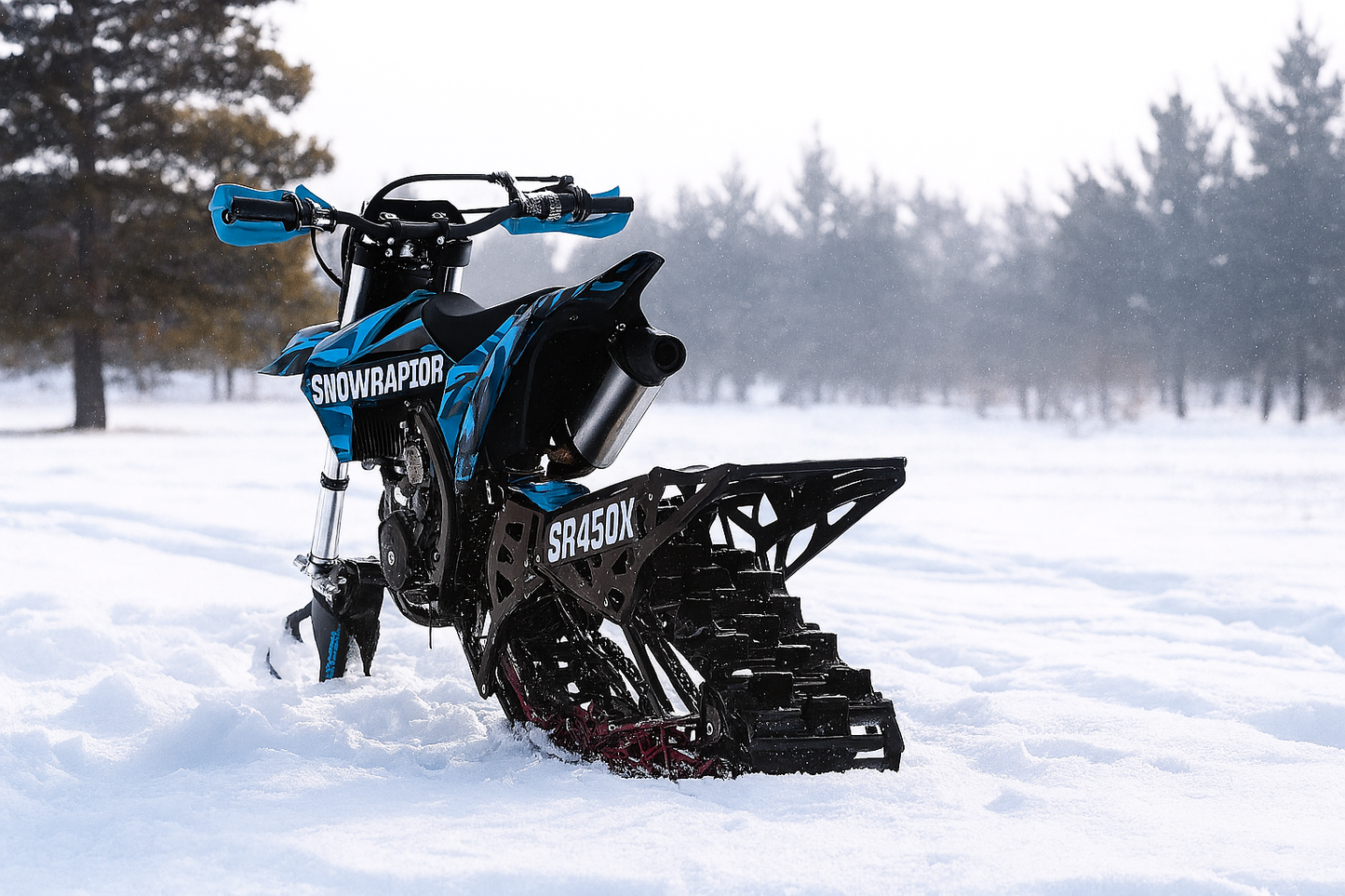

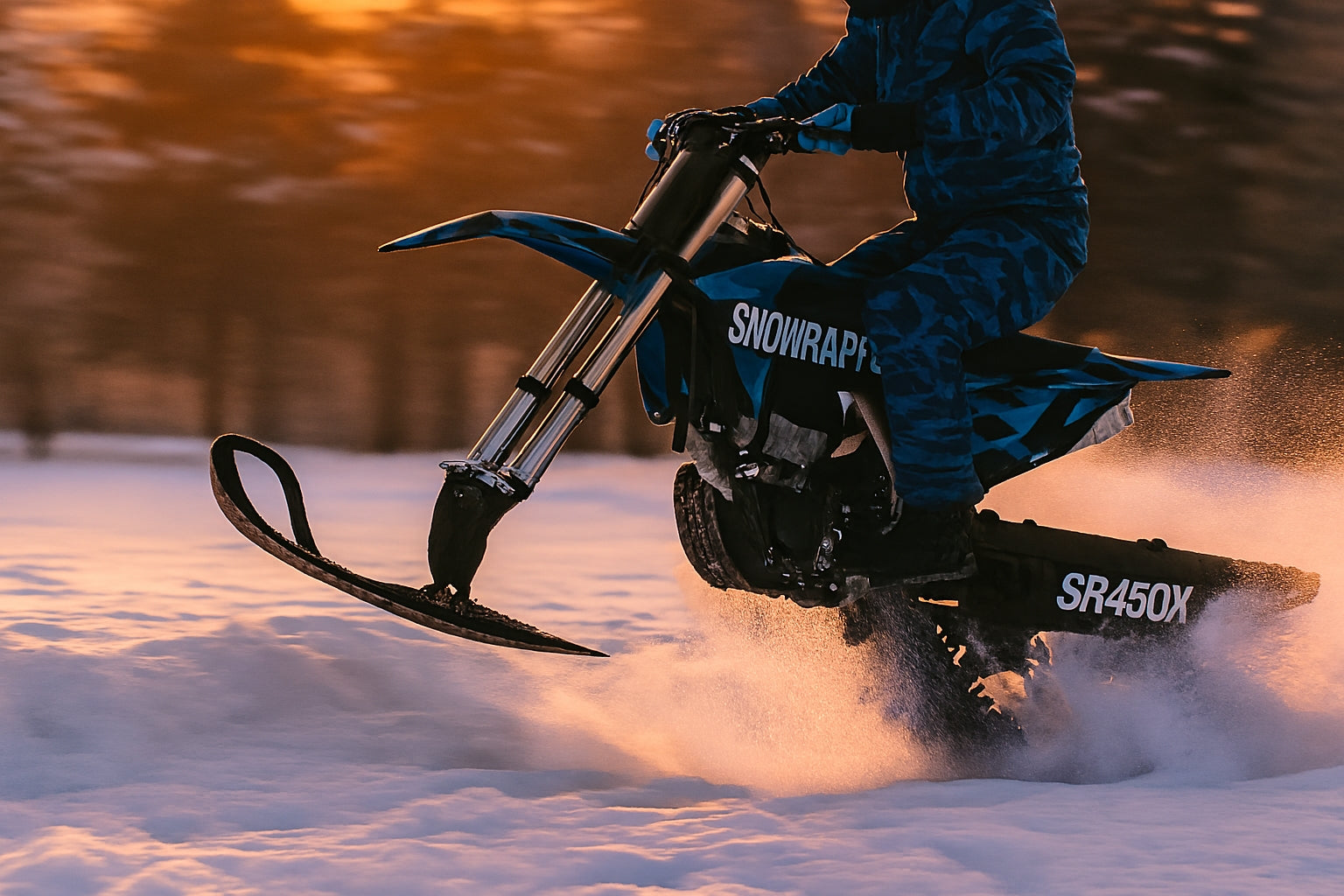

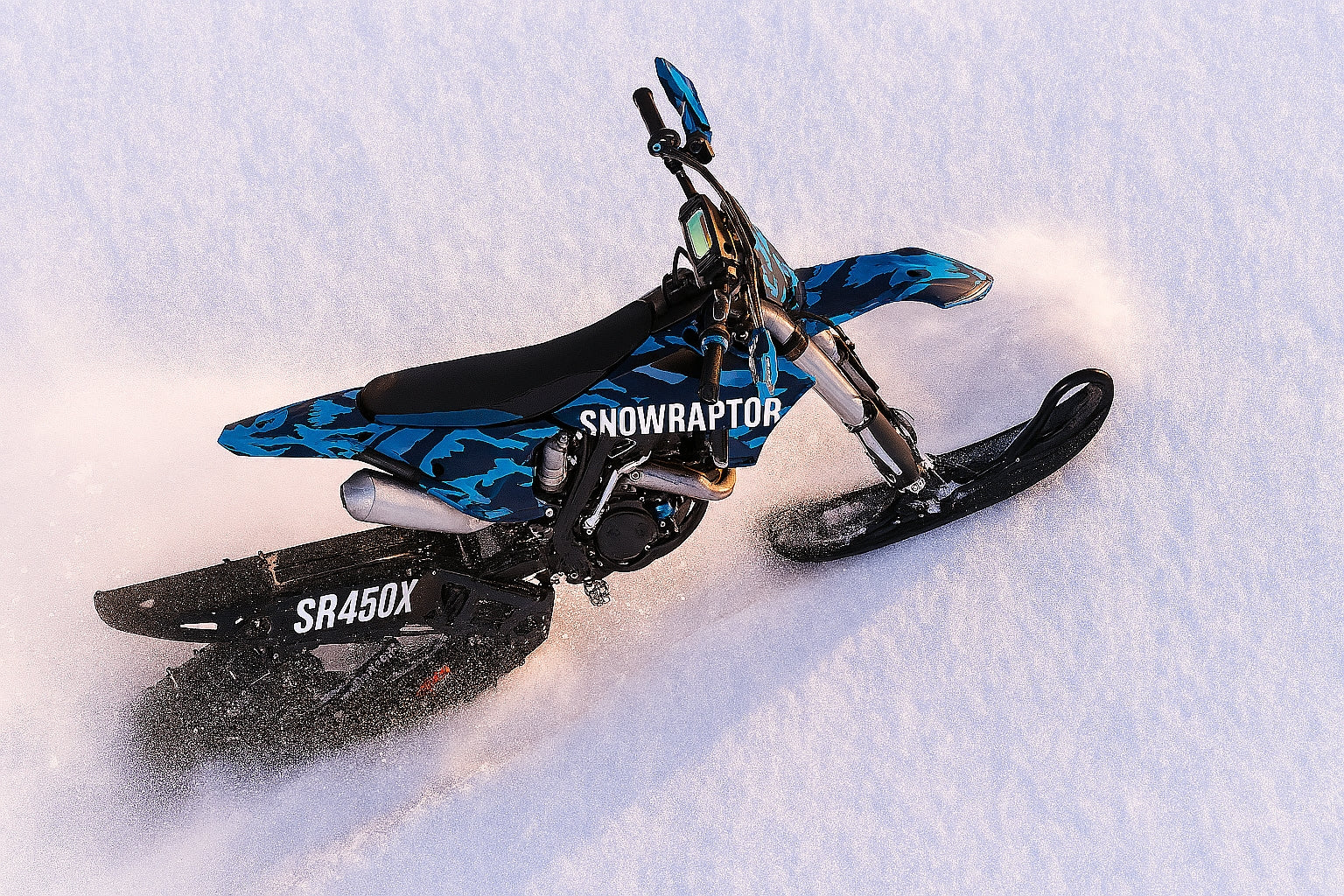

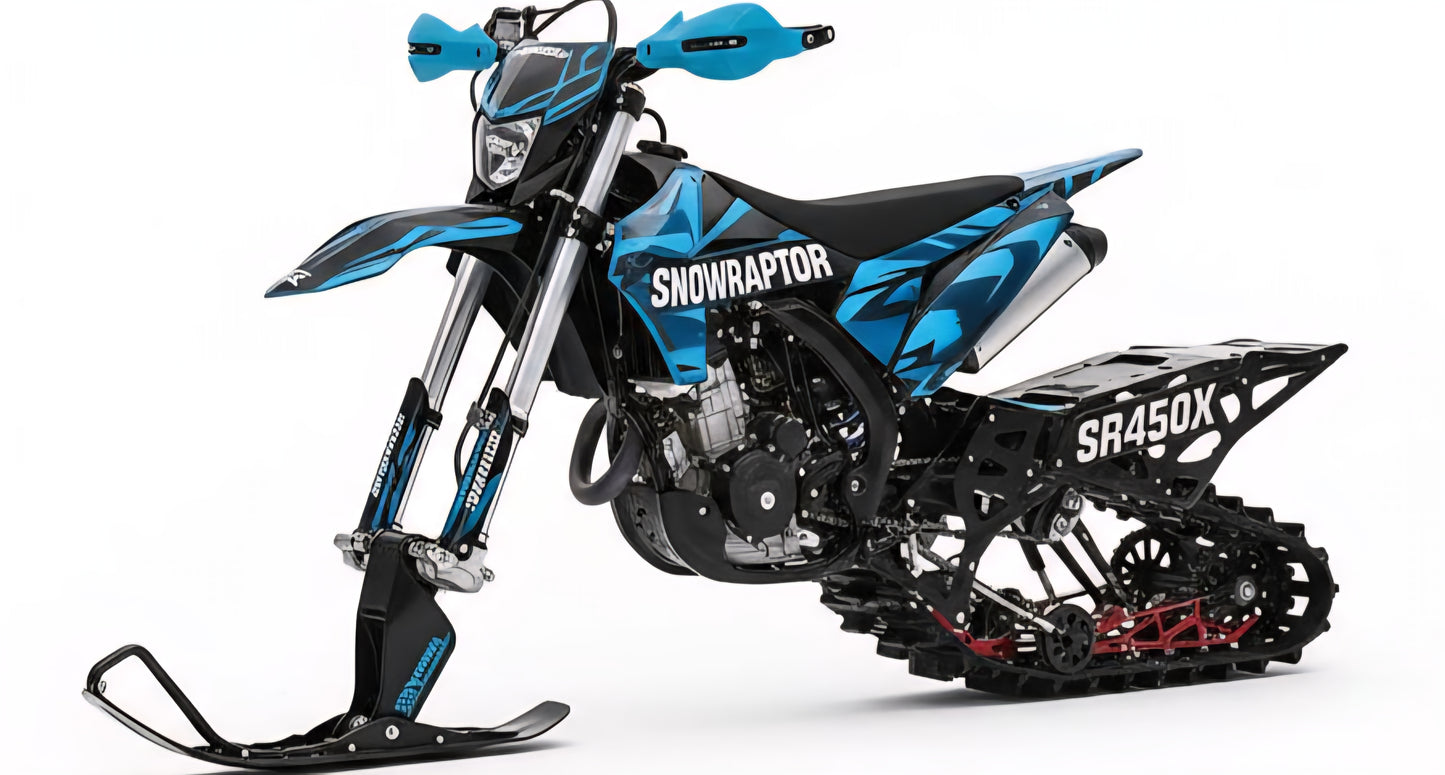

VMC SR450X SNOW RAPTOR

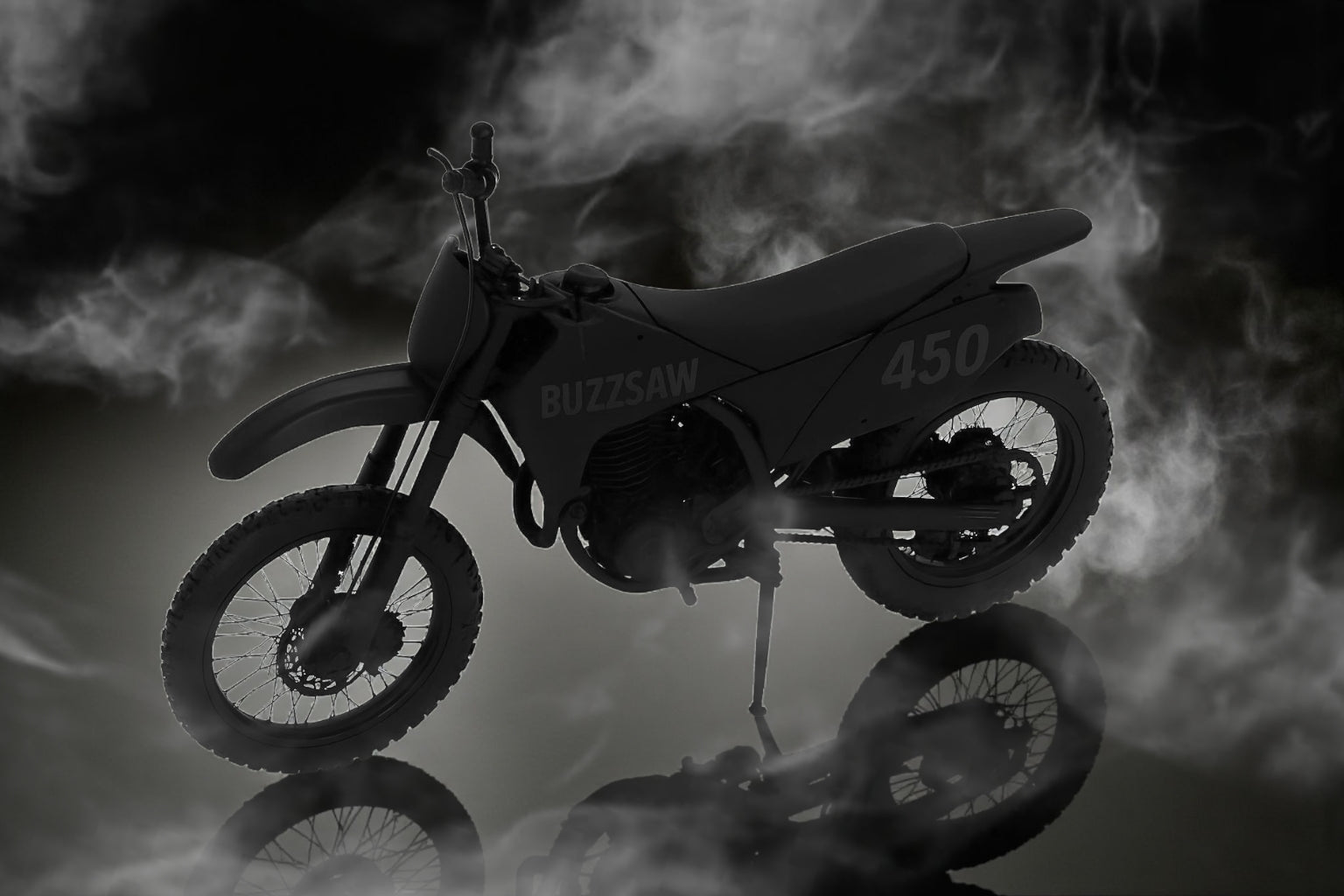

Is our Buzzwith either a 120"x12" track -or- a 129"×11.5" Track.

QUICK VIEW

• New with 12-month, 1000-hour WCF Warranty

Standard features

• Heated Grips
• Spare Runner

• Tools Fitted Specifically to this bike
• GPS Navigation with Emergency Beacon
• Aluminum Stand
• 450cc 4-Stroke
• 5-Speed Manual

Fantastic more affordable option to big brands names. Offering equal warranties, features, performance and tech as "big motorcycle" but for $$$ thousands $$$ less.

The endearingly nicknamed Sno-Rap is built from a VMC 450cc Competition Dirt Bike, the Trail Raptor 450 XTRM and given a 12" wide by 106" long timbersled with 12" travel.

- Engine Type: 450 cc (27.5 cu in) liquid-cooled 4-stroke single-cylinder
- Engine Model: ZS194MQ - NC450 series by Zongshen
- Bore × Stroke: 3.78 in × 2.44 in
- Compression Ratio: 10.5 : 1
- Fuel System: electronic fuel injection, 1.73 in throttle body
- Ignition: CDI with digital spark control
- Start System: electric start with kick-start backup
- Transmission: 6-speed sequential gearbox
- Final Drive: 520-pitch O-ring chain
- Clutch: multi-plate wet clutch
- Frame: chromoly steel trellis, rally-tuned
- Subframe: removable aluminum alloy
- Front Suspension: inverted fork, 11.8 in travel, adjustable preload/rebound/compression
- Rear Suspension: linkage-type monoshock, 12.6 in travel, adjustable preload/rebound
- Steering Head Angle: 63°
- Trail: 4.33 in
- Swingarm: boxed steel, reinforced pivot
- Steering Stem Bearings: tapered roller
- Swingarm Pivot Bearings: sealed
- Brake Front: 10.2 in wave disc, twin-piston caliper
- Brake Rear: 8.7 in wave disc, single-piston caliper
- Brake Lines: stainless-steel braided
- Ski: HDPE, 47.2 in × 12.6 in × 0.59 in with steel runner
- Track Assembly: 106.1 in rubber track; steel-reinforced; 1.5 in lugs
- Track Width: 11.8 in
- Track Pitch: 2 in
- Track Tensioner: adjustable slide rail
- Ski Suspension: independent A-arm, 4.7 in travel
- Wheelbase (with snowkit): 58.6 in
- Ground Clearance: 14.2 in
- Seat Height: adjustable 37.0 in–37.8 in
- Overall Length: 86.6 in
- Overall Width: 33.5 in
- Overall Height: 53.2 in
- Dry Weight (bike only): 297.6 lb
- Wet Weight (with snowkit): 429.9 lb
- Fuel Tank Capacity: 7.4 US gal
- Range: ~217.5 mi at steady throttle
- Fuel Economy: ~47 mpg (US) mixed conditions
- Peak Power: 40.2 hp @ 8 000 rpm
- Peak Torque: 27.3 ft·lb @ 7 000 rpm
- Redline: 9 500 rpm (10 200 rpm limiter)
- Idle Speed: 1 400 ± 100 rpm
- Cooling System: dual radiators with crash guards
- Oil Cooler: integrated in radiator circuit
- Coolant Capacity: 2.32 qt ethylene-glycol mix
- Oil Capacity: 1.90 qt synthetic 10W-50
- Airbox Volume: 0.66 US gal dual-stage foam filters
- Electrical Output: 200 W stator, voltage regulator
- Battery: 12 V, 30 Ah lithium-ion
- Lighting: 1 500 lumen LED headlight; LED tail light
- Dashboard: digital LCD—speed, gear, rpm, fuel, hour meter, diagnostics
- Handlebars: 1.13 in chromoly, adjustable risers ± 0.79 in
- Controls: thumb throttle with dual-cable redundancy
- Handguards: rally-spec reinforced plastic
- Heated Grips: optional, three heat levels, 3 A draw
- USB Port: 5 V/2 A outlet on dash
- Roadbook Holder: integrated under fairing
- GPS Mount: aluminum bracket on bars
- Skid Plate: full-coverage aluminum
- Engine Guards: tubular steel
- Body Panels: UV-resistant polyamide composite
livery
- Frame Finish: powder-coat matte black
- Service Interval: oil/filter every 20 hr; valves every 40 hr
- Spark Plug: NGK BR9ES, gap 0.031 in
- Valve Clearance: intake 0.004 in; exhaust 0.006 in
- Fork Oil Volume: 9.5 fl oz per leg
- Shock Oil Volume: 8.5 fl oz

Standard model Timbersled

Technical Specifications

Gearing
- Case gearing (upper : lower): 18 : 17

Drivetrain
- Chain/Belt drive: 52–520 X-Ring
- Driver sprocket: 2.86 pitch, 6-tooth
- Driveshaft: Standard
- Drivetrain type: Chain drive
- Chain type: 520 X-Ring

Track
- Track dimensions (W × L × lug): 11.5 × 129 × 2.5 in
- Lug height: 2.5 in

Dimensions & Weight
- Dry weight (front): 16.0 lbs / 7.25 kg
- Dry weight (rear): 112 lbs / 51 kg
- Overall length: 68 in / 172.7 cm

Rear Suspension
- Hyfax: Standard
- Rail color: Natural
- Rear travel (fixed fit): 12.0 in / 30.5 cm
- Rear travel (adjustable fit): 20.0 in / 50.8 cm
- Shock type: IFP
- Suspension arm color: Black
- Suspension type: A-arm

Chassis
- Bumper: Included (Natural/Black)
- Rails length: 129 in
- Frame color: Natural/Black
- Graphics color: Black/Titanium
- Side panel color: Black
- Snow flap: Included

Front Suspension
- Ski hoop color: Black
- Ski type: Single-runner
- Spindle: Lightweight, Black

Features
- Fuel storage: 2.9 gal / 11 L accessory tank

Extras that are included with your new SNO-450X
- Heated Grips
- GPS Navigation with Emergency Beacon
- Tool Kit
- Aluminum Transport Stand
- Spare Steel Ski Runner
- Track Lug Replacement Kit

Owner Commentary:
  - “Unmatched deep-snow traction—even at full lean.”
  - “Stability at 70 mph open flats is phenomenal.”
  - “EFI never hiccups, even below –25 °F.”
  - “Suspension soaks chop; I’ve skipped ride days before swapping back to wheels.”

Performance Tests:
  - 0–37 mph in 3.9 s on packed snow
  - Top speed 75 mph in open terrain
  - 93 mi single-tank endurance run
  - 30° slope climb in deep powder

Troubleshooting Tips:
  - Pre-heat battery below –15 °F
  - Re-tension track after first 31 mi
  - Use full-synthetic oil for cold starts
  - Annually inspect all A-arm bearings

Recommended Gear:
  - DOT-certified snow helmet
  - Heated gloves & boots
  - Avalanche beacon mount
  - Layered cold-weather riding suit

Shipping:
  - Crate Weight: 397 lb
  - Crate Dimensions: 7.5 ft × 3 ft × 4 ft
  - Every order is unique, shipping is calculated with insurance at checkout. Average $500 shipping in the USA

Break-In Procedure:
  - Ride 20 min at low load
  - First oil change at 5 hr
  - Valve check at 10 hr

-Storage:
  - Fog engine with corrosion inhibitor
  - Drain or stabilize fuel
  - Remove & store battery indoors

- Brand Promise: Same quality, features and performance as the big brands -substantially more affordable.

 "Want a Yamaha? Put a sticker on it"

- Customer Satisfaction: 4.8/5 average rating
- Return Policy: 30 days, restocking fee applies
- After-sales Support: 24/7 hotline and online parts portal

Here’s what riders rave about most when they hop on a SNO-450X

- Deep-Snow Foat
  The 11.8 in ski and 11.8 in track work like magic—letting you glide over untouched powder instead of plowing through it.

- Rally-Style Agility
  At just under 300 lb dry, it feels feather-light. You can flick it through tight trees or pop off snow-bank lips without feeling like you’re wrestling a tank.

- Cold-Start Reliability
  EFI with a heated throttle body and lithium-ion battery means instant fire-ups, even when temps dip below ‑25 °F.

- Quick Swap-Back Kit
  One hour, basic tools—swap the snowkit for wheels and you’ve got a street-legal dirt bike ready for summer adventures.

- Suspension That Eats Chop
  12.6 in rear travel and 11.8 in front travel soak up rutted back-country runs and keep you perched, not bounced.

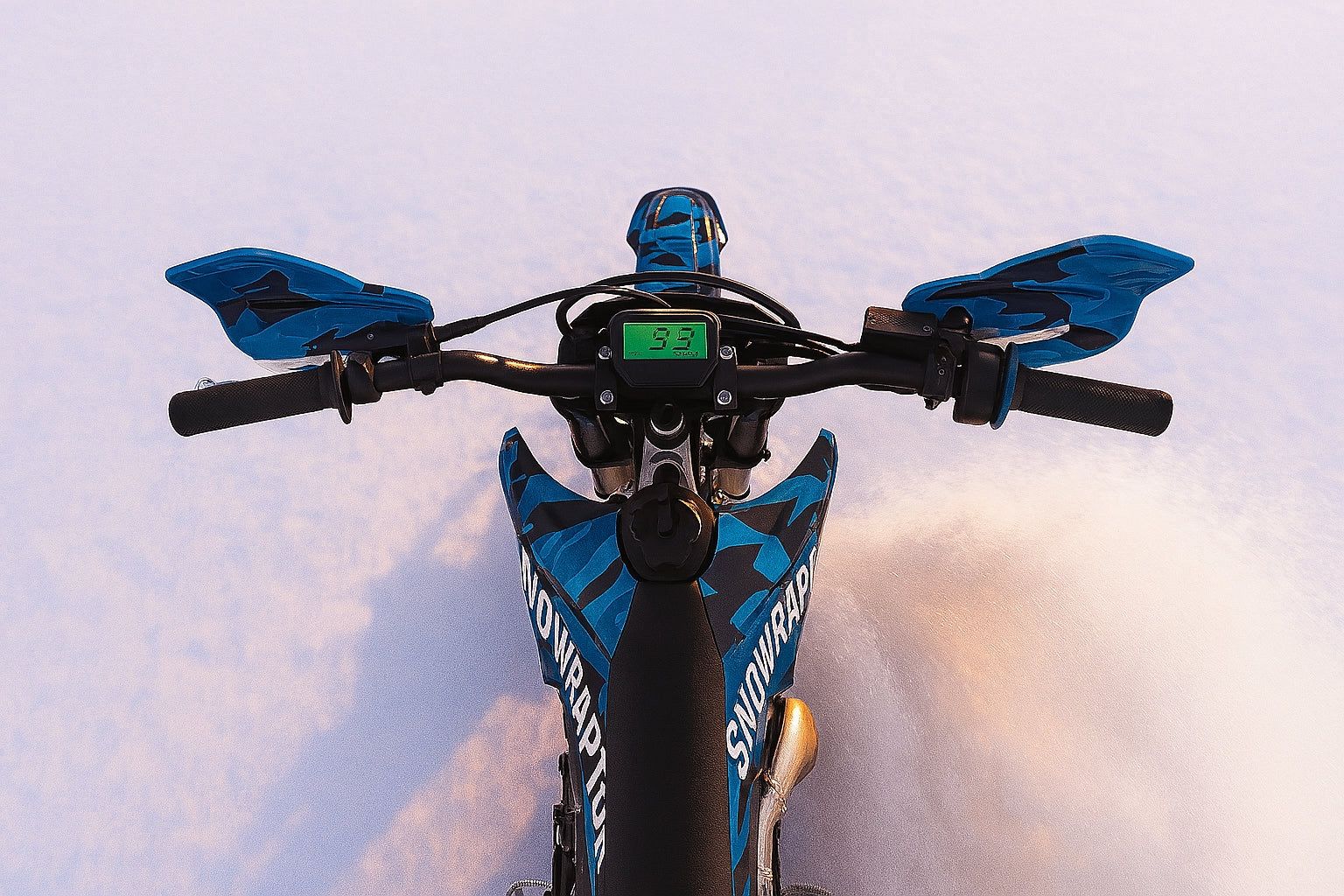

- Digital Rally Dash
  Speed, gear, fuel, RPM, even fault codes—all right in your line of sight. No guessing, just go-time confidence.

- Custom Livery Options
  “SNOWRAPTOR 450X” or “SR450X” decal kits let owners express themselves, and swapping graphics is faster than a pit stop.

- True All-Season Versatility
  From deep-powder snow rides to spring mud bogs (with wheels on), it’s the one-bike-does-it-all platform everyone keeps in the barn.

- Community-Driven Mods
  Owners are constantly sharing quick-install titanium guards, LED light-bar setups, and carbon-fiber accents—so you can kit yours to match your style.

- Adventure-Ready Ergonomics
  Flat, narrow seat and high, adjustable bars mean you can stand, lean, swerve, and chase sunrise lines all day without fatigue.


Top Q&A Entries for the SNO-450X

- Q: How does the K16-NC450 perform in deep powder versus hard-packed trails?
  A: Its 11.8 in ski and 11.8 in track width maximize flotation in deep snow, while adjustable ski runner and suspension tuning deliver precise edge control on firmer surfaces.

- Q: Can the EFI system ice over in sub-zero temps?
  A: No—heated throttle body and insulated fuel lines maintain atomization down to –30 °F, ensuring reliable cold starts.

- Q: How easy is it to swap back to wheels for summer riding?
  A: With quick-release hubs and bolt-on ski brackets, the conversion takes under 1 hr using a basic hand-tool kit.

- Q: Are aftermarket upgrades plug-and-play?
  A: Yes—520-chain sprockets, KTM-style footpegs, and many rally accessories bolt directly; custom brackets exist for niche parts.

- Q: Is there room for a pillion passenger?
  A: A two-up subframe pad fits, but it shifts weight rearward; recommended only for short jaunts.

- Q: How often should owners check track tension?
  A: Inspect and adjust every 31 mi or more frequently in wet, icy, or abrasive snow conditions.

- Q: How reliable is the electric start at altitude?
  A: The 200 W stator and 30 Ah lithium battery deliver consistent cranking up to 14 800 ft; the kick-start backup covers worst-case scenarios.

- Q: What runner options exist for the ski?
  A: Stock steel runner for general use; optional carbide-tipped runner kit for icy crust penetration.

- Q: How significant is power loss at high elevations?
  A: EFI mapping compensates up to 14 800 ft; expect under 8% peak-power drop with the optional high-altitude jet kit.

- Q: What’s the ideal break-in procedure?
  A: Ride at moderate throttle for first 20 min, change oil/filter at 5 hr, then progressively increase load.
